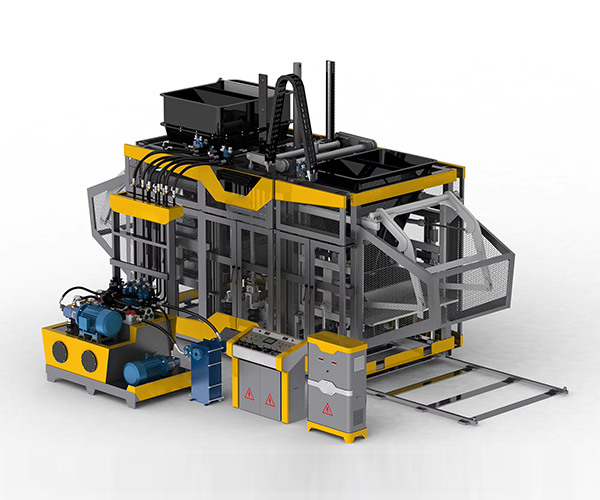

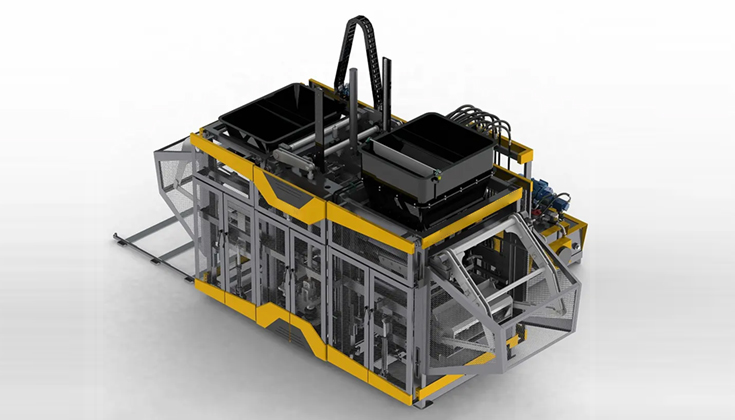

T20 Block Making Machine

T20 is Linghao's current flagship model with large production capacity and high degree of automation. The core system adopts a four-axis linkage servo vibration system, which can achieve high-frequency vibration, low amplitude, and idling operation effects, high efficiency and energy saving, low inertia ejection vibration. T20 Block Machine is very fit for large block factory.

Size: 390mm*190mm*190mm

Size: 240mm*115mm*90mm

Quote Now

Operation Manual

Profit Analysis

Product Details

T20 Block Making Machine

1.High Efficient Servo System: Absolutely strong power and very fast block forming.
2.Euro Style Protective Dumping Airbag: Protect the block molds which the block forming. The block molds can use 60% longer compared to other common block machines.
3. Magnetic levitation displacement detection device: It will make the finished blocks very flat and very beautiful.
4. Absolutely Large Forming Platform: It will make more profit for the customers.
5. Material: Q335B Steel Adopted for the reliability of the block machines.
6. Annealing: It will make the block molds more clean and much more stronger.
7. Finished Blocks Height: 45-500mm.
8. Imported shock pad: Shock absorption and noise reduction.
9. Vibrating Platform: Military alloyed steel adopted for the absolutely strength and longer using time.

Get A Quote

Parameter

T20 Block Machine Technical Parameter

Main Specifications

T20	TECHNICAL DATA
Dimension(Main Machine)	4900X3020X4870mm
Rating pressure	21MPa
Vibration frequency	0-75HZ
Vibration	Table vibration
Pallet size	1400x1300mm
Suitable height for block	50～300mm
Cycle time	14-24sec
Power	147.7kW

Spare Parts

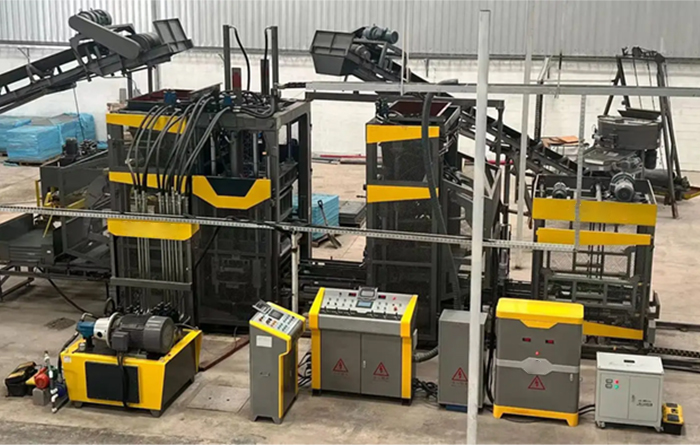

T Series Brick Making Machine Production Line 3D Example

Get A Quote

Projects

Brick Making Machine Projects

Paving Block Series

Solid Block Series

Paving Block Series

Solid Block Series

Sales Point

Main components

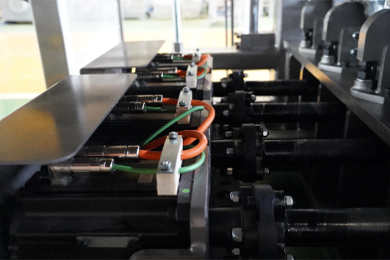

High Efficient and Low Energy Cost Servo System

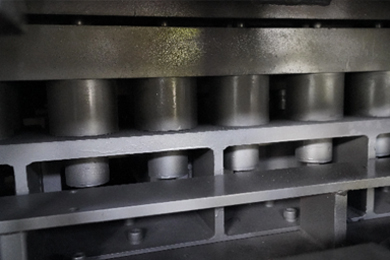

Reliable Protective Dumping Airbag

Q335B 14mm Special Steel Adopted

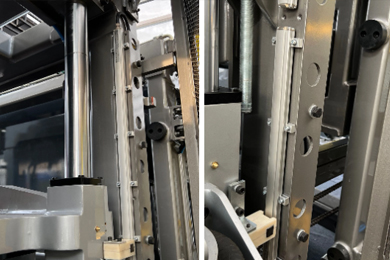

1mm Error Magnetic levitation displacement detection device
