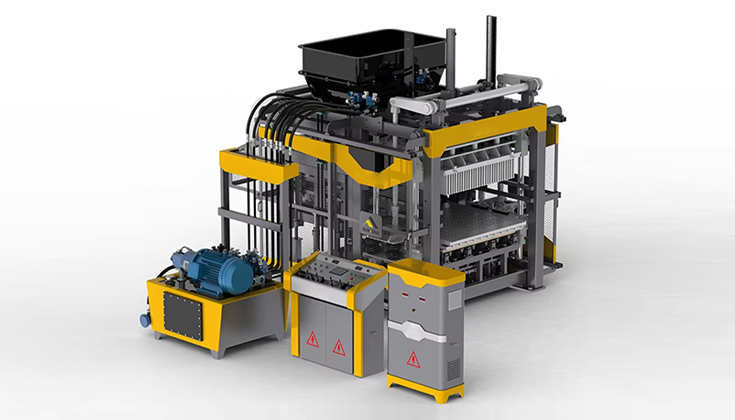

T18 Block Making Machine

T18 Block Making Machine

T18 is a large-scale block forming machine. The vibration system adopts dual servo motors with forced synchronization mechanism, fast response speed and good synchronization. The forming parameters can be set according to the requirements of different brick types. The forming speed is fast, which greatly meets the needs of customers to produce various brick products, such as special-shaped cement products, hollow bricks, paving bricks, solid bricks, curbstones, etc. High production capacity and high efficiency, with fully automatic lines to achieve high automation, more suitable for investment and production of medium and large enterprises.
Size: 390mm*190mm*190mm
Size: 240mm*115mm*90mm
Product Details
Parameter
Machines List
Projects
Purchase Points
Product Details
T18 Block Making Machine
1. High-efficiency servo system: using high-efficiency two-axis servo, high speed, high frequency vibration can be realized, good synchronization, energy saving and noise reduction;
2. High-efficiency hydraulic control system: It is driven by a high-horsepower double-pump motor, which has high efficiency, can achieve flexible movements and quick response to actions;
3. Airbag clamping: reduce sound and noise, increase the speed of mold change, and reduce mold damage;
4. Damping pad: rubber pad made of imported Michelin raw rubber, high-efficiency damping and noise reduction, durable;
5. Double pressure head cylinder design: effectively improve the strength and quality of products;
6. Rotary feeder: 360°rotating rake, equipped with scraping device, wide applicability, especially good for making high-quality tiles;
7. Anti-mixing pigment feeding system: while anti-mixing, it effectively improves the surface quality of the tiles;
8. Auxiliary automatic mold changing system: realize quick mold change and effectively improve production efficiency;
9. Intelligent control: The core hardware of the control system adopts Siemens PLC, and the remaining sensor components adopt well-known brands such as German Turck; the operation is simple and easy to understand; it has a full range of fault alarm system and automatic diagnosis functions, which greatly shortens the troubleshooting time.
Parameter
T18 Block Machine Technical Parameter
Main Specifications
Main Specifications

Technical data

T18

Dimension(Main Machine) (mm)

3980×3040×3610

Rating pressure (MPa)

21

Vibration

Table vibration

suitable height for block(mm)

50~200

Power ( kW )

87.2

Pallet Size 1400×1200
Spare Parts
T Series Brick Making Machine Production Line 3D Example
T Series Brick Making Machine Production Line 3D Example
Get A Quote
Projects
Brick Making Machine Projects
Sales Point
Main components
High Efficient and Low Energy Cost Servo System
Reliable Protective Dumping Airbag
Q335B 14mm Special Steel Adopted
1mm Error Magnetic levitation displacement detection device
Why Linghao Machinery is Trusted by 1000+ Clients
We make profits and more profits for the customers. All we do is for customers .
Most Suitable Model Supplied To Customer
The engineers' team and R&D will work out the most suitable model and auxiliary equipment, as per the request of capacity, brick size and customers' plant.
On Time Or Ahead Production And Delivery
The raw material and common spare parts will be stocked in our warehouse, even it will cost us more money.
Support All The Time
With all the support, customers will make the block machine run stable and repair block machine as fast as possible. Hence more money will be made for the customers.
