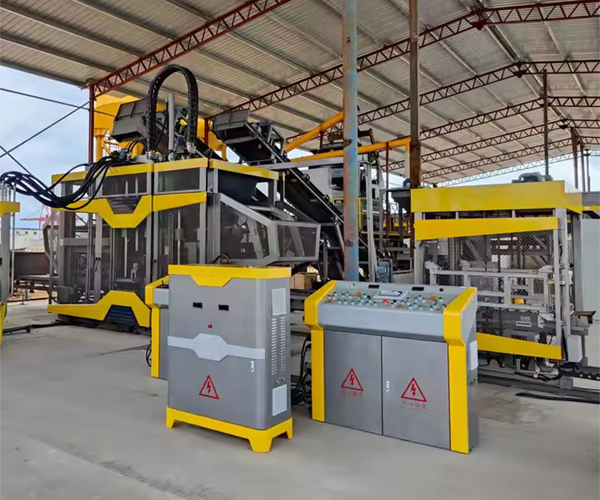

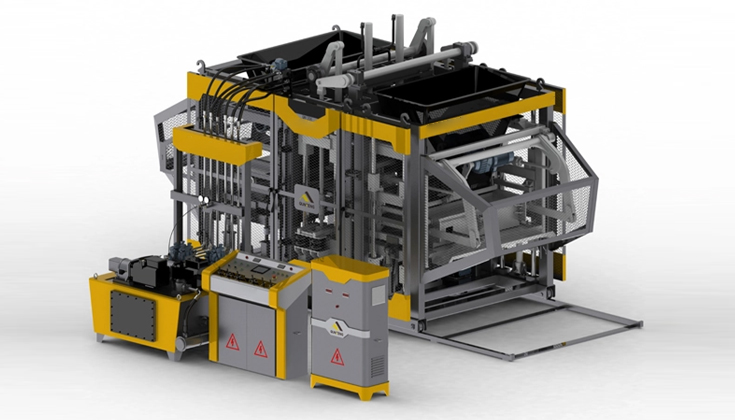

T12 Block Making Machine

Compared with the traditional vibrating brick making machine, T12 performs better in noise reduction, molding speed, production efficiency and product density. The closed surface car has an anti-mixing mechanism system, which effectively improves the surface quality of the product. With the matching full-automatic line, it can mass-produce permeable bricks, PC bricks, hollow bricks, pavement bricks, curbstones, blocks and other concrete products, achieving a high degree of automation.

Size: 390mm*190mm*190mm

Size: 240mm*115mm*90mm

Quote Now

Operation Manual

Profit Analysis

Product Details

T12 Block Making Machine

1. U-shaped vibration system: low noise and high efficiency, fast product forming
2. Anti-mixture color feeding system: Improve the surface quality of pavers
3. Airbag clamping: reduce noise and increase the service life of the mould
4. Imported shock pad: shock absorption and noise reduction

Get A Quote

Parameter

T12 Block Machine Technical Parameter

Main Specifications

T12	TECHNICAL DATA
Dimension(Main Machine)	3510X2700X3250mm
Rating pressure	21MPa
Vibration frequency	0-75HZ
Vibration	U-shaped vibration
Pallet size	1360x700mm
Suitable height for block	35-300mm
Cycle time	10-22sec
Power	69kW

Spare Parts

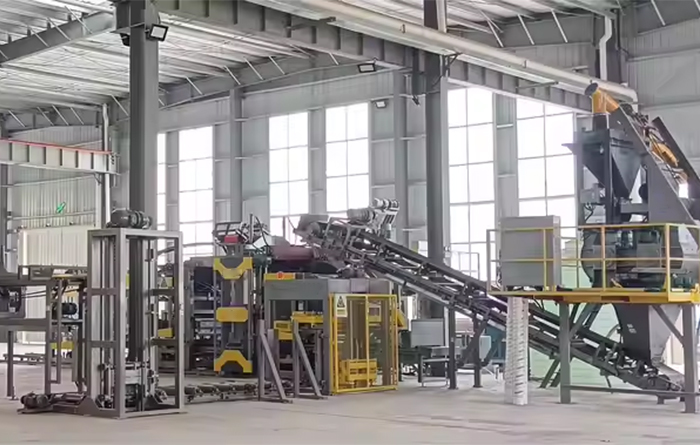

T Series Brick Making Machine Production Line 3D Example

Get A Quote

Projects

Brick Making Machine Projects

Paving Block Series

Solid Block Series

Paving Block Series

Solid Block Series

Sales Point

Main components

High Efficient and Low Energy Cost Servo System

Reliable Protective Dumping Airbag

Q335B 14mm Special Steel Adopted

1mm Error Magnetic levitation displacement detection device
