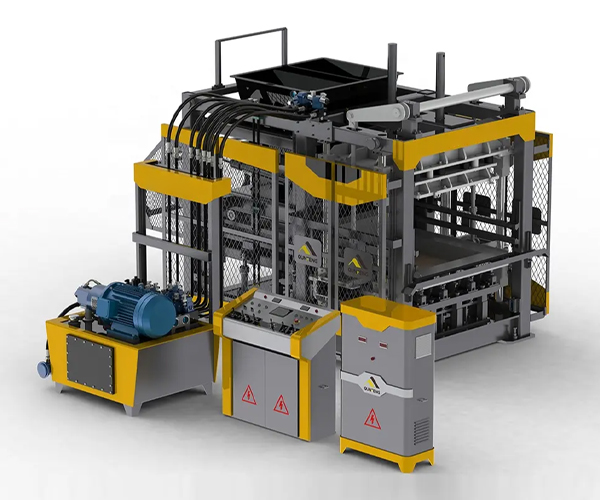

T15 Block Making Machine

T15 is a large-scale block forming machine. The vibration system adopts dual servo motors with forced synchronization mechanism, fast response speed and good synchronization. The forming parameters can be set according to the requirements of different brick types. The forming speed is fast, which greatly meets the needs of customers to produce various brick products. It has large production capacity and high efficiency, and can be equipped with a fully automatic line to achieve a high degree of automation.

Size: 390mm*190mm*190mm

Size: 240mm*115mm*90mm

Quote Now

Operation Manual

Profit Analysis

Product Details

T15 Block Making Machine

1.Efficient four-axis servo system: Strong power fast product forming
2.Anti-mix color feeding system:Improving the surface quality of pavers
3.Airbag clamping: Increase the service life of the mould
4.Imported shock pad: Shock absorption and noise reduction
5.Auxiliary automatic mold change: High degree of automation, convenient and efficient

Get A Quote

Parameter

T15 Block Machine Technical Parameter

Main Specifications

T15	TECHNICAL DATA
Dimension(Main Machine)	4250X2780X3210mm
Rating pressure	21MPa
Vibration frequency	0-75HZ
Vibration	Table vibration
Pallet size	1400x1000mm
Suitable height for block	50～300mm
Cycle time	11sec
Power	68.4kW

Spare Parts

T Series Brick Making Machine Production Line 3D Example

Get A Quote

Projects

Brick Making Machine Projects

Paving Block Series

Solid Block Series

Paving Block Series

Solid Block Series

Sales Point

Main components

High Efficient and Low Energy Cost Servo System

Reliable Protective Dumping Airbag

Q335B 14mm Special Steel Adopted

1mm Error Magnetic levitation displacement detection device

Why Linghao Machinery is Trusted by 1000+ Clients

We make profits and more profits for the customers. All we do is for customers .

Most Suitable Model Supplied To Customer

The engineers' team and R&D will work out the most suitable model and auxiliary equipment, as per the request of capacity, brick size and customers' plant.

On Time Or Ahead Production And Delivery

The raw material and common spare parts will be stocked in our warehouse, even it will cost us more money.

Support All The Time

With all the support, customers will make the block machine run stable and repair block machine as fast as possible. Hence more money will be made for the customers.
