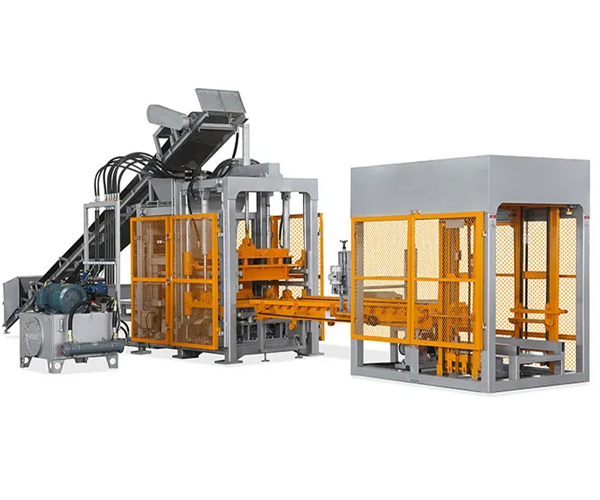

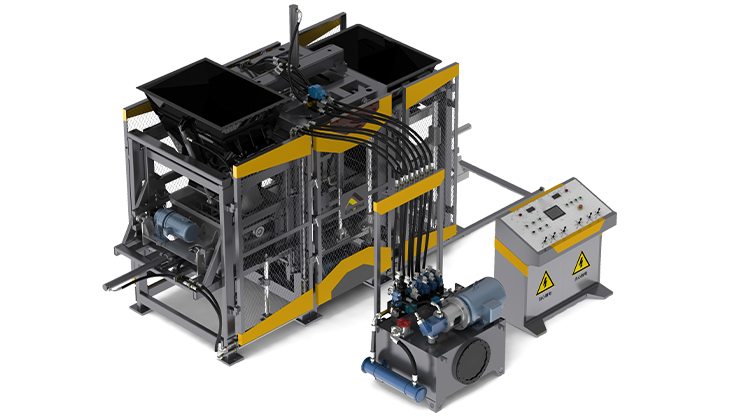

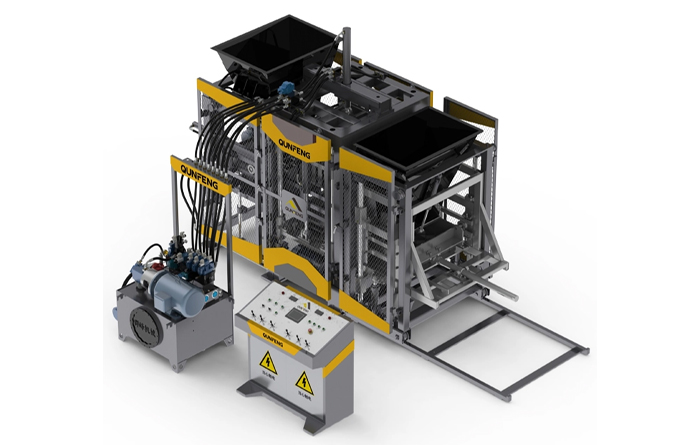

T7 Block Making Machine

The Paver Block Machine T7 is an efficient and reliable solution for producing durable, high-quality interlocking pavers. Designed for precision and optimized for performance, it ensures consistent output while minimizing energy consumption. Ideal for both small and large-scale production, the T7 excels at creating pavers for driveways, walkways, and other outdoor uses. Its simple operation and low maintenance requirements make it an excellent investment for businesses looking for cost-effective, high-performance equipment. With its compact design and user-friendly features, the Paver Block Machine T7 is perfect for small to medium-sized enterprises seeking a straightforward and efficient production line.

Size: 390mm*190mm*190mm

Size: 240mm*115mm*90mm

Quote Now

Operation Manual

Profit Analysis

Product Details

T7 Block Making Machine

1. Introduce frequency converter, saves the power.
2. All the action is controlled by high-low speed, which can improve the working speed of equipment, and reduce the impact to equipment, lifespan of machine is greatly improved .
3. The vibration system adopts double - motor vibration, compression molding ,Synchronous demoulding ,with high production efficiency and short cycle time. The motor operating speed can be adjusted for different raw materials to get good vibration.
4. Aggregate feeding system adopts rotary raking cart, fast feeding with high quality, easy for changing the rake and maintenance
5. Compact structure, easy operation and maintenance, solid and reliable, suitable for customers who starts the investment.

Get A Quote

Parameter

T7 Block Making Machine

Main Specifications

T7	TECHNICAL DATA
Dimension(Main Machine)	3270X1850X3200mm
Rating pressure	21MPa
Vibration frequency	0-68HZ
Vibration	Table vibration
Pallet size	880x680mm
suitable height for block	50-200mm
Cycle time	15sec
Power	37.5kW

Spare Parts

Brick Making Machine Spare Parts

Get A Quote

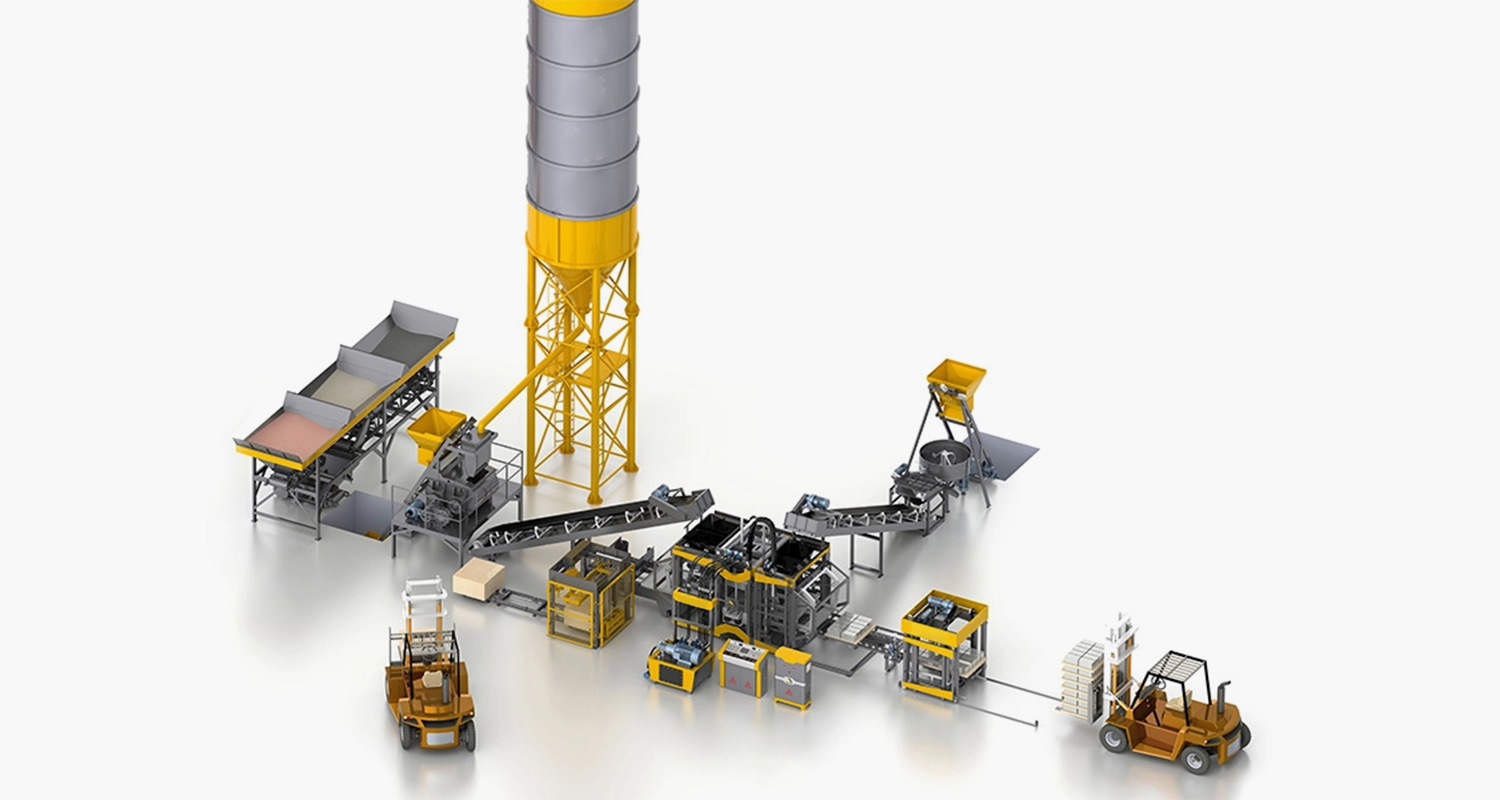

Projects

Brick Making Machine Projects

Paving Block Series

Solid Block Series

Paving Block Series

Solid Block Series

Sales Point

Linghao Block Machine is Popular For Below

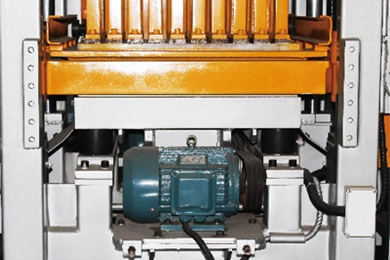

Vibration system

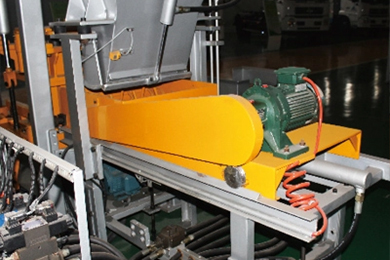

Material feeding system

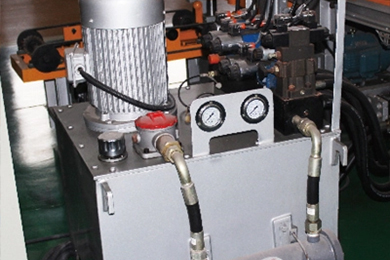

Hydraulic system

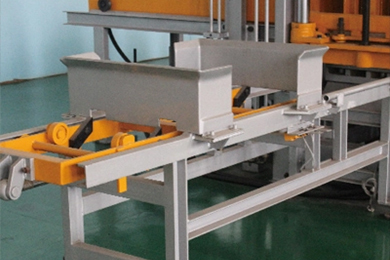

Pallt conveyor

Why Linghao Machinery is Trusted by 1000+ Clients

We make profits and more profits for the customers. All we do is for customers .

Most Suitable Model Supplied To Customer

The engineers' team and R&D will work out the most suitable model and auxiliary equipment, as per the request of capacity, brick size and customers' plant.

On Time Or Ahead Production And Delivery

The raw material and common spare parts will be stocked in our warehouse, even it will cost us more money.

Support All The Time

With all the support, customers will make the block machine run stable and repair block machine as fast as possible. Hence more money will be made for the customers.
